This should be into the MRJ Competition page, but I'm not sure how to put it there. Anyway, here goes.

Here are the first pictures I took of what is my entry for the Cameo Competition. I have emailed my form ....honest. The pictures date from roughly six months ago when I started the project, which is intended to be used as an illustration of how straightforward modelling can be in 2FS using the latest in track-work kits and bits together with converted 'N' gauge stock representing a modern period. It's a happy coincidence that it (I think) fits the criteria.

The genesis of the plan is based on a very simple operation I witnessed first hand in the mid 1980s just north of Newcastle upon Tyne where a 'trip' working out of Tyne Yard (reporting no 6P03) finished up at an industrial facility which was part of ICI. Materials were 'shipped' in by rail and the end product, explosives, were dispatched again by rail. The trip working was known by railway staff as the 'Callerton Trip' because that is the name of the small cluster of dwellings close to where the facility existed just south of Newcastle Airport. You will see I have subtly mis-spelled the name. This is because I only got the idea from the prototype; it's not claiming to be an accurate portrayal of the location or what went on there, just a suggestion with the merest semblance of authenticity, but provides a reason (if we ever need one) for the plan whilst at the same time showing you don't need to go too complicated (and with a single turnout this just doesn’t get any simpler…!) in order to represent a prototype operation. Off we go then, with some early shots of the baseboards. Some of these pictures will appear in the 2mm Magazine and maybe elswhere in due course.

I am very aware that whilst I have often suggested building something like this to many people, I have never myself built a very small simple layout in order to illustrate the philosophy, so 'Cameo Callaton' is my attempt to put that right. The self imposed disciplines are:-

1/ no more than 2' 6" long in its transportable state

2/ 8" - 12" deep

3/ some semblance of prototype credibility

4/ ease of assembly, preferably the fiddle yard should be secreted within the body of the layout for transport.

5/ L.E.D. lit and examine the possibility of mains/battery operation.

In addition since I have now an aversion to rectangular layouts e.g. absolute right angles and squares on all sides of the baseboard, there must be a pleasing to the eye curve on the viewing side.

More anon.....
Mick S.

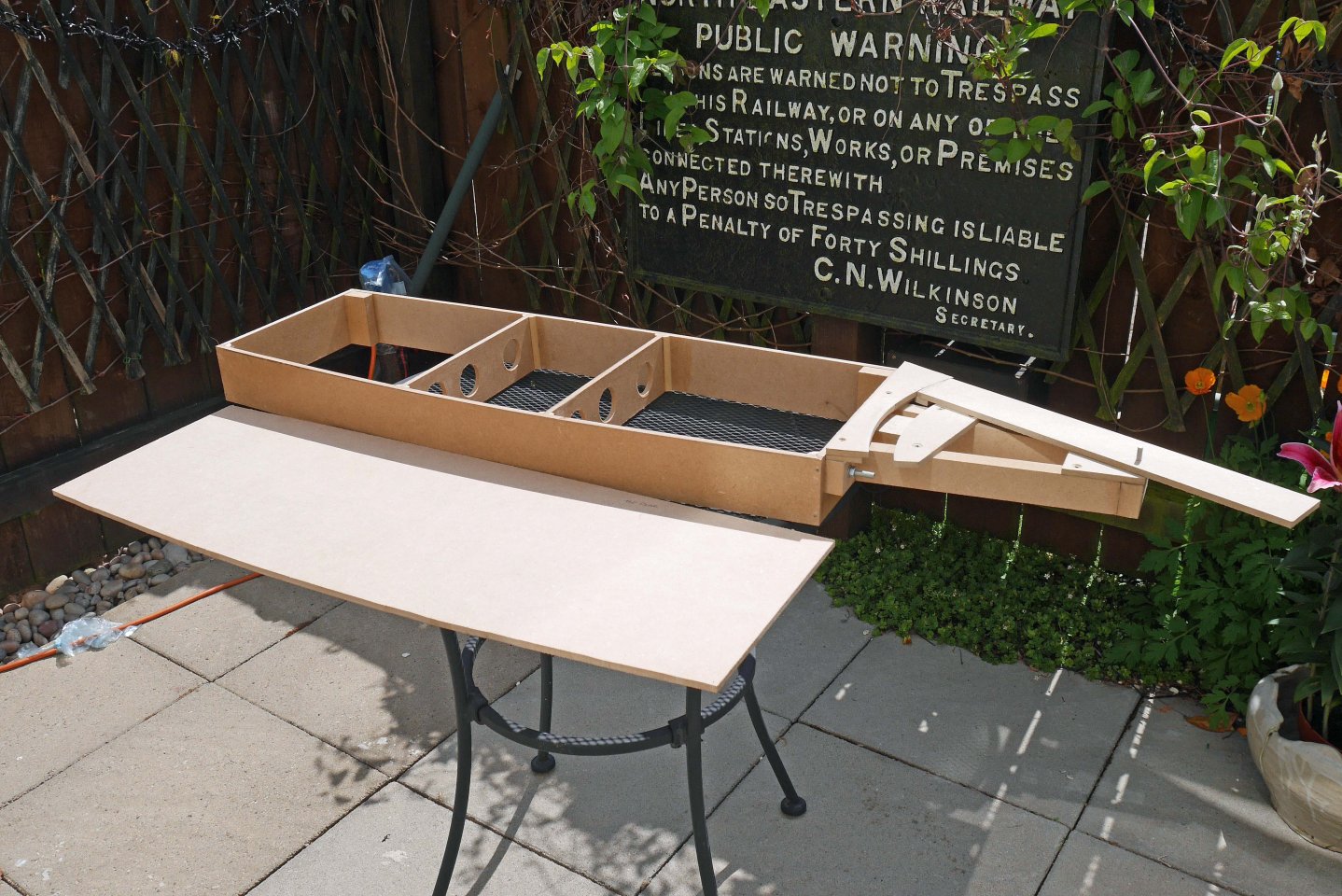

1. The basic baseboard with fiddle yard attached. The solid top has not yet been cut to shape. It will be screwed in place. Do you like the trespass sign? I used to model the N.E.R.



2. Closer view of the sector plate fiddle - a very simple affair.

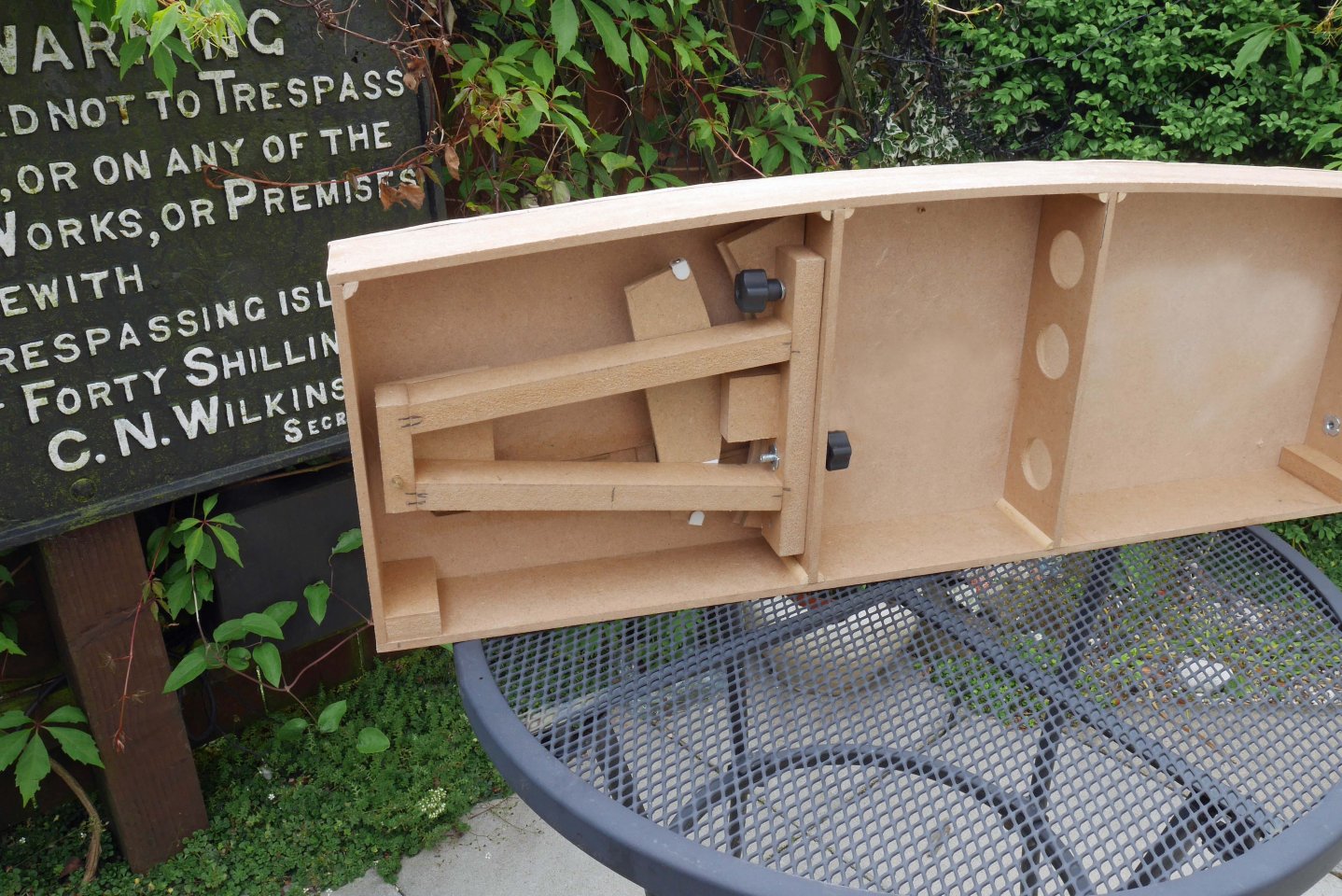

3. An underside view showing simplicity of the sector plate construction and illustrating how it sits neatly within the body of the baseboard. Yes, the baseboard top surface has been cut to shape and screwed in place at this stage.






Last edited:

jonte

Western Thunderer
This should be into the MRJ Competition page, but I'm not sure how to put it there. Anyway, here goes.

Here are the first pictures I took of what is my entry for the Cameo Competition. I have emailed my form ....honest. The pictures date from roughly six months ago when I started the project, which is intended to be used as an illustration of how straightforward modelling can be in 2FS using the latest in track-work kits and bits together with converted 'N' gauge stock representing a modern period. It's a happy coincidence that it (I think) fit the criteria.

The genesis of the plan is based on a very simple operation I witnessed first hand in the mid 1980s just north of Newcastle upon Tyne where a 'trip' working out of Tyne Yard (reporting no 6P03) finished up at an industrial facility which was part of ICI. Materials were 'shipped' in by rail and the end product, explosives, were dispatched again by rail. The trip working was known by railway staff as the 'Callerton Trip' because that is the name of the small cluster of dwellings close to where the facility existed just south of Newcastle Airport. You will see I have subtly mis-spelled the name. This is because I only got the idea from the prototype; it's not claiming to be an accurate portrayal of the location or what went on there, just a suggestion with the merest semblance of authenticity, but provides a reason (if we ever need one) for the plan whilst at the same time showing you don't need to go too complicated (and with a single turnout this just doesn’t get any simpler…!) in order to represent a prototype operation. Off we go then, with some early shots of the baseboards. Some of these pictures will appear in the 2mm Magazine and maybe elswhere in due course.

I am very aware that whilst I have often suggested building something like this to many people, I have never myself built a very small simple layout in order to illustrate the philosophy, so 'Cameo Callaton' is my attempt to put that right. The self imposed disciplines are:-

1/ no more than 2' 6" long in its transportable state

2/ 8" - 12" deep

3/ some semblance of prototype credibility

4/ ease of assembly, preferably the fiddle yard should be secreted within the body of the layout for transport.

5/ L.E.D. lit and examine the possibility of mains/battery operation.

In addition since I have now an aversion to rectangular layouts e.g. absolute right angles and squares on all sides of the baseboard, there must be a pleasing to the eye curve on the viewing side.

More anon.....
Mick S.


1. The basic baseboard with fiddle yard attached. The solid top has not yet been cut to shape. It will be screwed in place. Do you like the trespass sign? I used to model the N.E.R.
View attachment 66810


2. Closer view of the sector plate fiddle - a very simple affair.
View attachment 66811
3. An underside view showing simplicity of the sector plate construction and illustrating how it sits neatly within the body of the baseboard. Yes, the baseboard top surface has been cut to shape and screwed in place at this stage.

View attachment 66813




Hi Simpas.

Nice and simple sounds right up my street!

Funnily enough, I was only visiting the 2mm Association site earlier today and they seem to have a variety of options to tempt the novice.

Very neat baseboard construction and integral sector plate too. Well thought out.

As an owner of the Cameo layout book myself, I'm sure the curvilinear design will stand you in good stead with Mr. Rice.

Incidentally, have you finalised the track plan yet? The only reason I ask is that I note you mentioned employing only one turnout in your layout. However, from memory, and I'm sure Iain mentioned it in the recent MRJ article on the subject, I think a cameo (in his eyes) should have at least 'two' turnouts. I'll dig it out in due course and check again, but perhaps in the meantime, another member if reading this could enlighten?

Hopefully, I'm wrong (as usual), but thought it worth checking before you glue anything down! Will check and come back to you.

In the meantime, good luck and I'll watch with interest.

Jonte


adrian

Flying Squad
This should be into the MRJ Competition page, but I'm not sure how to put it there.
Sorry - I think that was my fault, hopefully it's sorted now and I've moved the thread to the MRJ area, if it's still a problem then please let me know and I'll try to sort it.

As for the design - there's some interesting ideas and it'll be great to see how it develops.


Simpas

Western Thunderer
Sorry - I think that was my fault, hopefully it's sorted now and I've moved the thread to the MRJ area, if it's still a problem then please let me know and I'll try to sort it.

Adrian, the problem is more than likely me not being able to see the most obvious of buttons...! Thank you for re directing it in any event.
cheers
Mick

Last edited by a moderator:

Simpas

Western Thunderer
Incidentally, have you finalised the track plan yet? The only reason I ask is that I note you mentioned employing only one turnout in your layout. However, from memory, and I'm sure Iain mentioned it in the recent MRJ article on the subject, I think a cameo (in his eyes) should have at least 'two' turnouts. I'll dig it out in due course and check again, but perhaps in the meantime, another member if reading this could enlighten?

Jonte,

Yes the plan is complete and the one and only turnout built and laid with pictures going to be posted here, maybe before the end of the week. As said elsewhere it has its basis in a prototype so there never was any plan to do other than keep it dead simple. Below is a shot taken by me with my trusty Practica MTL3 in the mid 1980s of the Callerton trip 6P03 at the end of the line showing the two roads coming away from the single turnout. I wish I had taken a few more shots...!

Callerton Terminus001.jpg


Looking at the article in MRJ I don't see any reference to the number of turnouts but if the competition rules preclude a single turnout effort then I'll withdraw gracefully, and will continue to build it, for the 'raison d'être' to use a Rice 'ism, is not soley to enter the competition but to encourage people to have a go at whatever scale they fancy - just so happens that 2mil is quite small but very workable and extremely portable; and, I will let people see how it eventually turns out whatever happens.

cheers
Mick


jonte

Western Thunderer
Incidentally, have you finalised the track plan yet? The only reason I ask is that I note you mentioned employing only one turnout in your layout. However, from memory, and I'm sure Iain mentioned it in the recent MRJ article on the subject, I think a cameo (in his eyes) should have at least 'two' turnouts. I'll dig it out in due course and check again, but perhaps in the meantime, another member if reading this could enlighten?

Jonte,

Yes the plan is complete and the one and only turnout built and laid with pictures going to be posted here, maybe before the end of the week. As said elsewhere it has its basis in a prototype so there never was any plan to do other than keep it dead simple. Below is a shot taken by me with my trusty Practica MTL3 in the mid 1980s of the Callerton trip 6P03 at the end of the line showing the two roads coming away from the single turnout. I wish I had taken a few more shots...!

View attachment 66819

Looking at the article in MRJ I don't see any reference to the number of turnouts but if the competition rules preclude a single turnout effort then I'll withdraw gracefully, and will continue to build it, for the 'raison d'être' to use a Rice 'ism, is not soley to enter the competition but to encourage people to have a go at whatever scale they fancy - just so happens that 2mil is quite small but very workable and extremely portable; and, I will let people see how it eventually turns out whatever happens.

cheers
Mick

Can't find it, Mick, thankfully. Must have dreamt it.

Carry on!

Great photo btw.

Jonte


Simpas

Western Thunderer
Can't find it, Mick, thankfully. Must have dreamt it.

Carry on!

Great photo btw.

Jonte

Jonte,

Thanks, many times I have wished I'd been in possession of a digital camera. This was taken 20 years before I got my first Nikon.

Mick

Cameo Callaton

Simpas

Western Thunderer
This second prototype picture below, dates from the time I got down from the footplate after the run, these were my escorts for the day. How did I manage this you might ask? Well, for 30 years I worked for the Queen and one of my calling off points, for a cup of tea you understand, was a railway establishment. Well one gets on talking and they quickly realise they're dealing with an enthusiast....! (they can't touch you for it) and before I knew where I was I was doing the Callerton trip. The ard gadgie * (older fellow) with his arms folded, the driver, was a star and really was a proud railwayman. It was a grand day out even though I had to be up at the crack of dawn and was back home by 10am.

Callerton Terminus004.jpg


*Oh, sorry I forgot to tell you. During the course of my ramblings you may in places detect a certain dialect that is nothing like the way Jerry Clifford talks - there will be translations for those who 'non parle par la anglais du nord'....!

Anyway, enough of my career anecdotes, (career as defined here, is to fall headlong completely out of control. Well sometimes that's how it felt) back to the project. This is a picture of the only turnout very soon after it was laid. This is one of the Easitrac pegged chair kits that has had some of the webbing removed to make it capable of being curved, in fact the removed webbing and revised curvature can be seen here; what started out as a right hand B7 is now a fairly large radius 'Y' turnout. Construction of the kits has been subject of articles in MRJ (243) and the 2mm Magazine. The 2mm Magazine has also had easy to follow articles on two methods of altering standard turnouts into something more bespoke.



The common crossing is milled from a single piece of nickel silver and greatly assists the novice builder. The chairs appearing to support the crossing are just plain Easitrac chairs i.e. not the pegged variety, which are simply cut in half and glued on to improve the look.

That's it for now. I've got a busy modelling weekend coming up so will be back next week to 'play nicely' again. Might get a chance to have a good look around WT as well to see what everyone else is up to.

Mick

Last edited:

BCN-Pete

Western Thunderer
Great stuff Mick - really looking forward to see this develop.

We'll agree to differ on orthogonal shaped layouts though :p ;)

Pete


Simpas

Western Thunderer
Great stuff Mick - really looking forward to see this develop.

We'll agree to differ on orthogonal shaped layouts though :p ;)

Pete

It's a broad church Pete and what a terrible place it would be if everything was the same. Keep doing the Kyle's (and the like) which I always find interesting and inspiring.

Mick


BCN-Pete

Western Thunderer
Keep doing the Kyle's (and the like) which I always find interesting and inspiring.

As you were the one who inspired me 30 years ago to move to 2mmFS (which actually took 20 years due to University, Marriage and kids first!) that means a lot to me - thanks Mick.

Cameo Callaton

Simpas

Western Thunderer

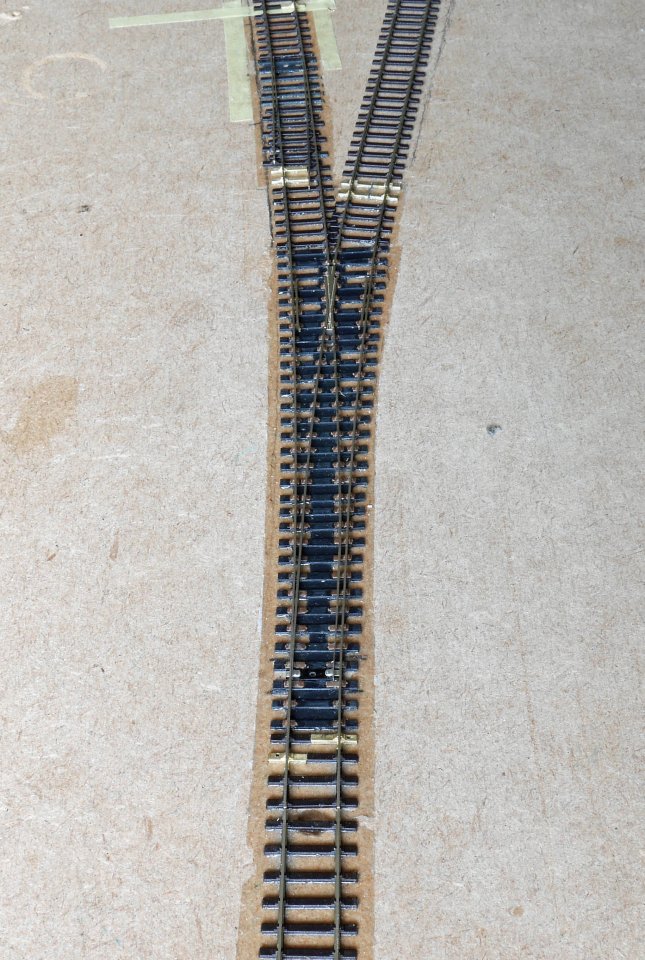

A little update, below is a picture of the single turnout which started life as a right hand B7. It's possible to make out the beginning of my first working trap point, of which more anon. The bright coloured sleepers are brass castings used to supply feed to the rails. Just below the switch a large hole is where an electro magnet will be positioned for uncoupling using my now standard Electra Couplings designed by John Whitehead around 1979.
